SLP74LV1T08
SINGLE POWER SUPPLY 2-INPUT AND GATE

    The SLP74LV1T08 is a single, level translating 2-input AND gate.

   The input is designed with a lower threshold circuit to match 1.8 V input logic at VCC= 3.3V and can be used in 1.8V to 3.3V level up translation. In addition, the 5V tolerant input pins enable level down translation (3.3V to 2.5V output at VCC = 2.5V).

    The output level is referenced to the supply voltage and supports 1.8V, 2.5V, 3.3V and 5.0V CMOS levels. The wide VCC range of 1.6V to 5.5V allows generation of desired output levels to connect to controllers or processors.


Main feature

  • Single supply voltage translator at 1.8V, 2.5V, 3.3V and 5.0V

  • Logic output is referenced to VCC

  • Input accept voltages up to 5V

  • Up translation

  • 1.2V to 1.8V at VCC = 1.8V

  • 1.5V to 2.5V at VCC = 2.5V

  • 1.8V to 3.3V at VCC= 3.3V

  • 3.3V to 5.0V at VCC = 5.0V

  • Down translation

  • 3.3V to 1.8V at VCC= 1.8V

  • 3.3V to 2.5V at VCC= 2.5V

  • 5.0V to 3.3V at VCC= 3.3V

  • ESD protection:

  • HBM Exceeds 2000V

  • CDM Exceeds 1000V

  • Latch-up performance exceeds 250mA

  • Specified from -40°C to +85°C and from -40°C to +125°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SLP74LV1T08KMTR SOT-353-5L ST Halogen free Tape & Reel
Block Diagram


Fig.1 Function diagram

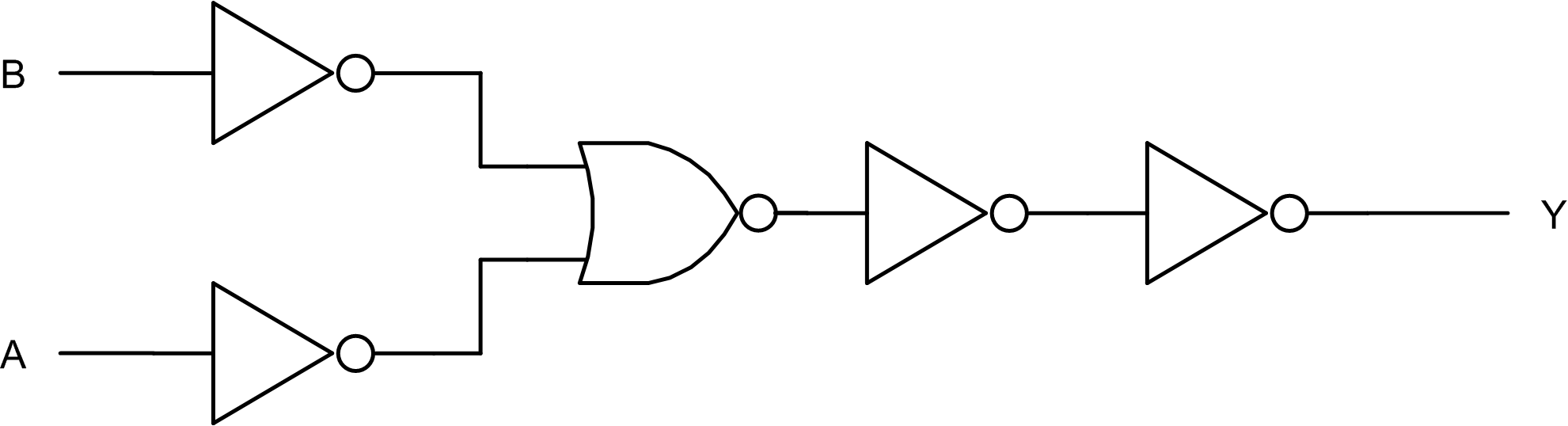

Fig.2 Logic diagram
