SLP74HC245
OCTAL BUS TRANSCEIVER WITH 3-STATE OUTPUTS

The SLP74HC245 is an 8-bit transceiver with 3-state outputs. The device features an output enable (OE———) and send/receive (DIR) for direction control. A HIGH on OE——— causes the outputs to assume a high-impedance OFF-state. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

Main feature

  • Wide Operating Voltage Range of 2 V to 6 V

  • Octal bidirectional bus interface

  • Input levels with CMOS levels

  • Non-inverting 3-state outputs

  • ESD protection:

  • HBM 2000V

  • CDM 500V

  • Specified from -40?C to +85?C and -40°C to +125°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SLP74HC245SNTR SOP-20-375-1.27 74HC245 Halogen free Tape & Reel
SLP74HC245JTTR TSSOP-20-225-0.65 74HC245 Halogen free Tape & Reel

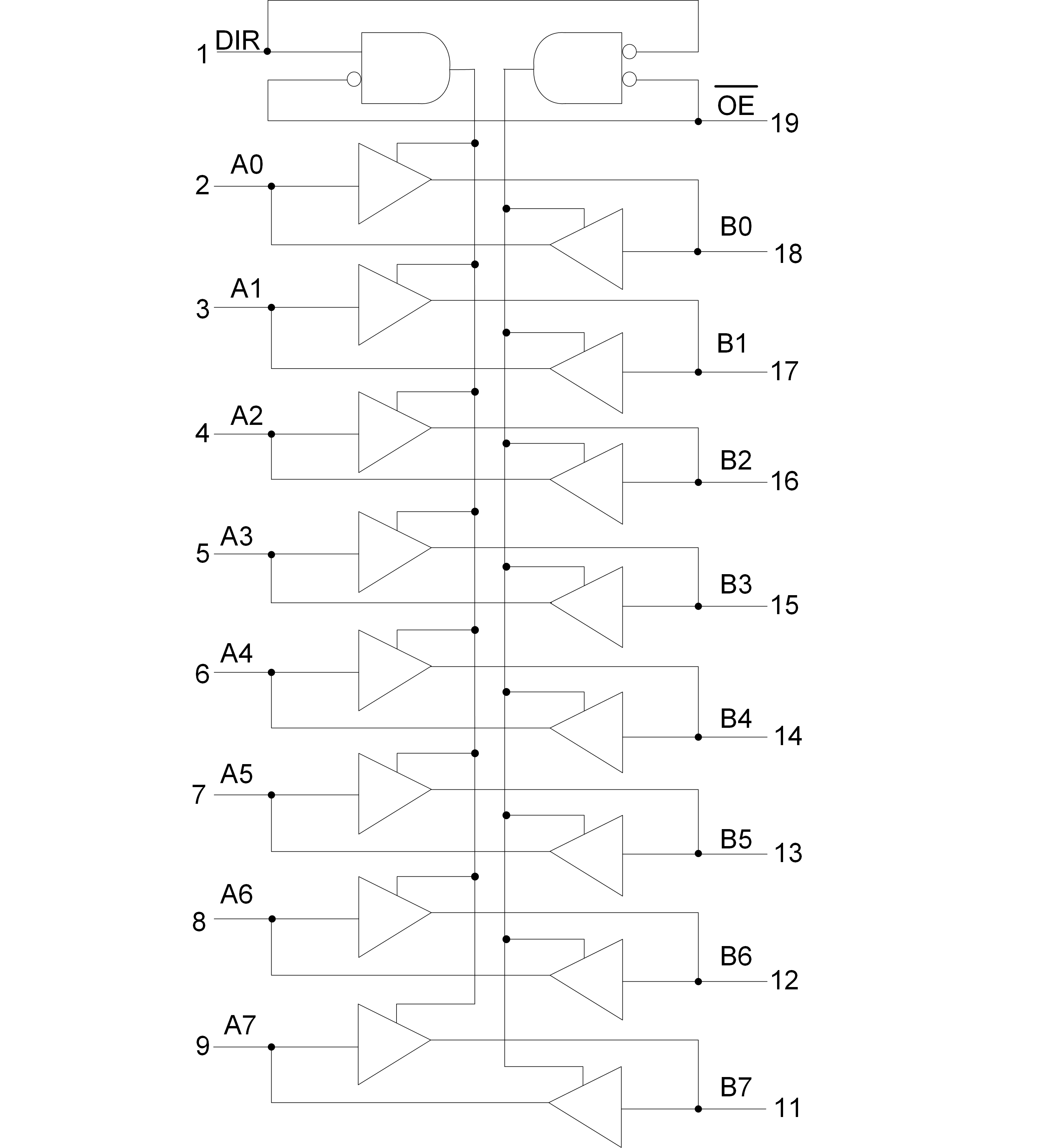

Block Diagram

SLP74HC245 (9000&3450).png

Documents
title Types of Size (KB) date Download the latest English version
SLP74HC245 0 1970-01-01 SLP74HC245 Brief Datasheet
